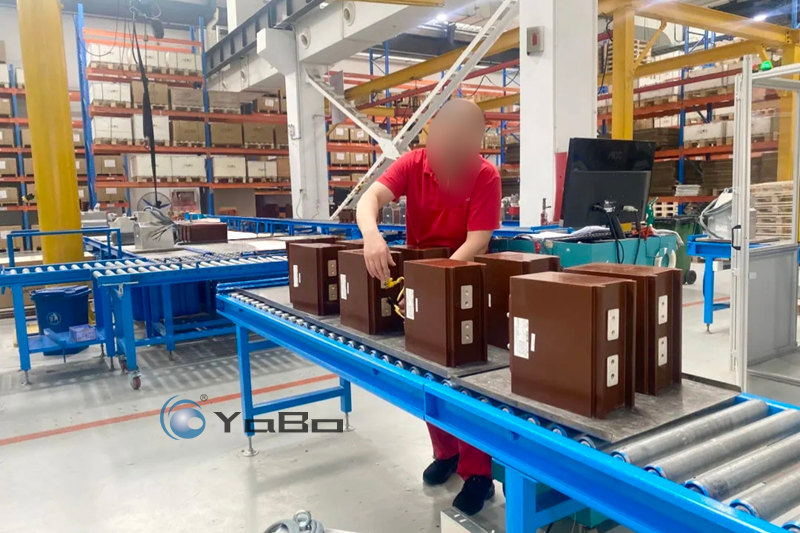

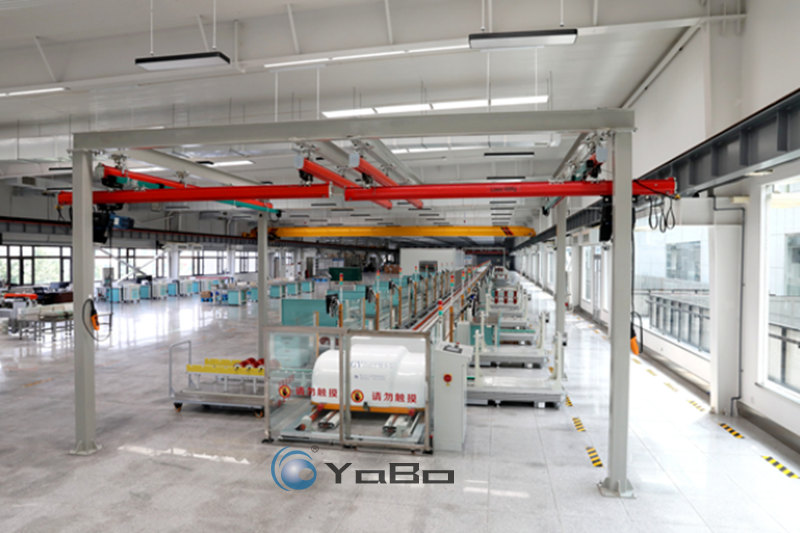

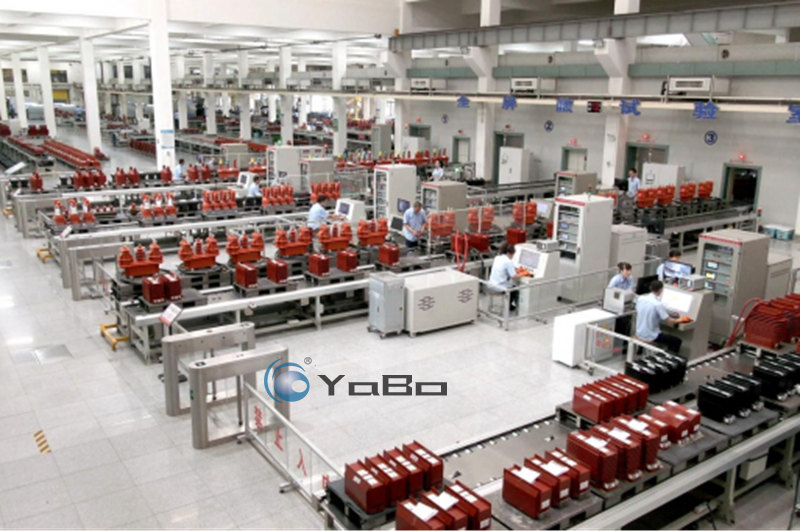

The instrument transformer assembly line is a special manufacturing system designed for the efficient and large-scale production of instrument transformer (current transformers CT, voltage transformers PT, etc.), covering full-process automated or semi-automated operations from raw material processing to finished product testing.
I. Key technologies and equipment of instrument transformer assembly line
Automated winding equipment: Supports multi-axis linkage and tension closed-loop control, and can adapt to rapid switching of coils of different specifications.
Epoxy resin pouring system: Including vacuum degassing device and mold temperature control system to ensure uniform pouring without bubbles.
Intelligent test platform: Integrate multi-functional test modules such as transformation ratio, polarity, and insulation, and realize automatic data collection and analysis through PLC or industrial computer control.
Vision inspection system: Used for inspection of appearance defects (such as coil damage, insulation cracks) to improve quality inspection efficiency.
II. Characteristics and trends of instrument transformer production lines
High precision and consistency: Reduce human intervention through automated equipment and ensure that the electrical parameters (such as error levels 0.2S and 0.5S) and mechanical size of each transformer meet standards.
Flexible production: Support multi-variety and small-batch production models, and adapt to the needs of different models (such as low-voltage current transformers and high-voltage voltage transformers) through rapid mold changes (such as replacing winding molds and pouring molds).
Reduction in labor costs: The clear division of labor and automated equipment in the assembly line allow staff to complete work tasks more efficiently and reduce reliance on skilled workers.
We are committed to providing high-quality instrument transformer products and high-quality services to customers around the world. If you have any needs or questions, please feel free to contact us.
