Product Overview
The KYN28A-12 switchgear production line is a switchgear production line engineered for manufacturing armored withdrawable AC metal-enclosed switchgear (KYN28A-12, commonly known as the 10 kV withdrawable switchgear). It consists of a heavy-duty roller conveyor line, modular assembly stations, inspection stations and a control system, enabling continuous production covering enclosure final assembly, truck (draw-out unit) assembly, primary component installation, secondary wiring and factory acceptance testing. The entire line is custom-engineered to the customer’s enclosure types, capacity and workshop conditions, and can be arranged in straight or corner layouts as a switchgear assembly line.
Product Configuration
| System | Composition & Function |
|---|---|
| Conveying system | Heavy-duty powered roller conveyor that conveys and positions enclosures between stations, serving as the material flow backbone of the switchgear assembly line; optional chain drive, accumulation buffering and lift transfer units |
| Assembly stations | Fixed stations arranged along both sides of the conveyor, covering busbar compartment assembly, cable compartment assembly, truck assembly, secondary wiring and other operations, each equipped with SOP cards traveling with the product |
| Inspection stations | Mechanical characteristic and electrical inspection stations embedded in the process flow, with test equipment configured to factory test standards |
| Control system | PLC control, variable frequency speed regulation and photoelectric sensors; optional MES data interface |
Product Features
- Heavy-duty conveying: the switchgear assembly line is designed for single-enclosure loads of 700–800 kg; chain drive is used for heavy-duty applications, keeping enclosures moving smoothly between stations with heavy loads never carried by hand
- Modular stations: assembly stations are split by process and arranged independently, allowing stations to be added or removed as capacity changes and takt time to be adjusted to suit different workshop layouts
- Inspection embedded in the flow: mechanical characteristic tests, main circuit resistance measurement, power-frequency withstand voltage tests and five-prevention interlock verification are completed on the line, with inspection records traveling with each product for full traceability
- Truck assembly and alignment: dedicated truck assembly and transfer stations are configured for the middle-mounted truck structure, keeping truck-to-enclosure alignment accuracy under control
- Accumulation and takt balancing: optional accumulation rollers provide buffering between stations, automatically regulating supply between upstream and downstream stations to balance line takt
Technical Parameters (Custom Reference Ranges)
| Item | Reference Range | Remarks |
|---|---|---|
| Conveying type | Powered roller conveyor; chain drive available for heavy-duty duty | Selected by enclosure weight and takt time |
| Per-unit load capacity | ≥1000 kg | Covers 700–800 kg enclosures plus tooling pallets |
| Number of stations | 6–12 | Customized by process flow and capacity |
| Production takt | Customized to annual capacity | Non-standard, subject to the technical proposal |
| Control | PLC + variable frequency drive | Optional MES data acquisition interface |
| Test equipment | Mechanical characteristic tester, circuit resistance tester, power-frequency withstand voltage tester, partial discharge tester (optional) | Configured to factory test standards |
| Layout | Straight, corner, diverging/converging | Customized to workshop conditions |
Applicable Product Range
The line accommodates KYN28A-12 and 12 kV withdrawable switchgear series of the same structure. One switchgear production line can cover:
- Rated parameters: rated voltage 3.6/7.2/12 kV; rated current 630–4000 A; rated short-circuit breaking current 16–50 kA
- Enclosure structure: two main parts — fixed enclosure and middle-mounted withdrawable truck; four compartments (busbar compartment, truck/breaker compartment, cable compartment, relay and instrument compartment)
- Truck types: circuit breaker truck, voltage transformer (PT) truck, isolating truck and metering truck; trucks of the same specification are interchangeable
- Protection and insulation: enclosure degree of protection IP4X; 1 min power-frequency withstand voltage 42 kV phase-to-earth (48 kV across the break); lightning impulse withstand voltage 75 kV phase-to-earth (85 kV across the break)

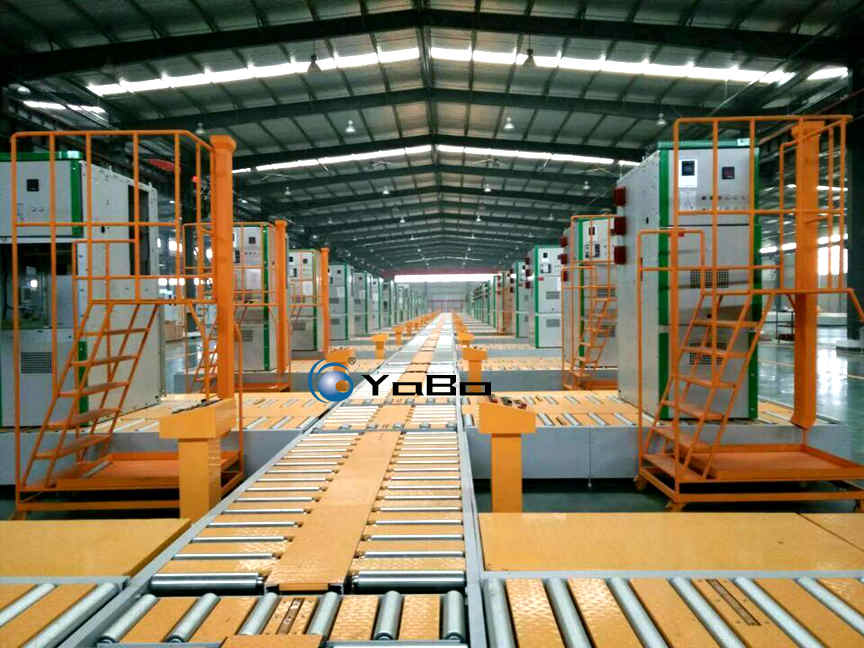

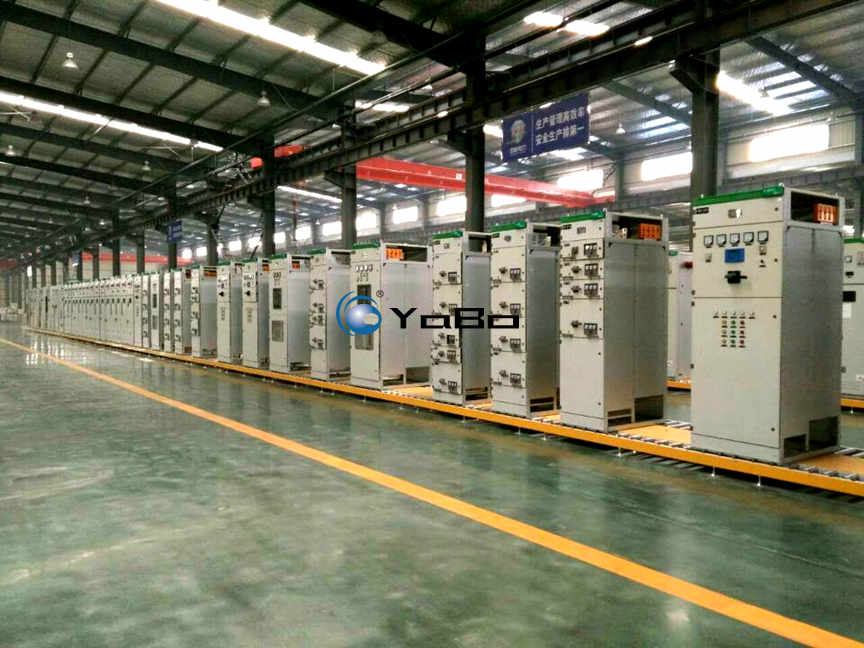

For reference on the enclosure types produced by the line and the workshop environment: rows of KYN28A-12 enclosures with orange truck operating platforms.
Configuration Options
- Conveying: gravity/powered roller conveyor, chain drive, lift transfer, corner conveying
- Testing: mechanical characteristic test, circuit resistance measurement, power-frequency withstand voltage, partial discharge (optional)
- Informatization: MES data interface, automatic test data acquisition
- Auxiliary equipment: truck transfer trolley, SOP boards, anti-collision photoelectric protection
Customization & Delivery
The line is a non-standard, custom-engineered system. Delivery scope includes design, line manufacturing, on-site installation, commissioning and acceptance. Technical parameters, station configuration and takt time are subject to the technical proposal confirmed by both parties.
